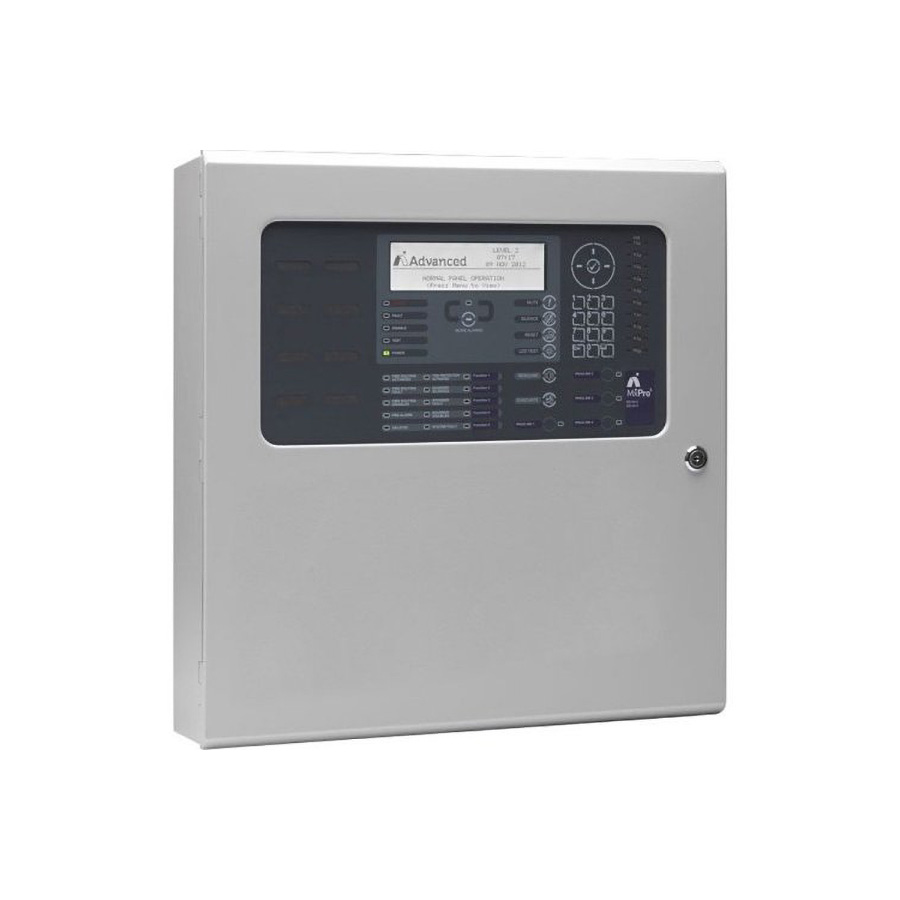

MxPro 5 series Control Panel

Description

The control panel features dual flash-based microprocessor technology, a high-resolution, high-contrast graphical LCD display, and a tactile keypad for easy navigation. The select-and-click programming aid simplifies both engineer configuration and end-user operation.

Advanced Functionality

• Powerful cause-and-effect programming allows flexible configurations.
• Enhanced trace diagnostics make it suitable for a wide range of applications, from small to large, complex, multi-area systems.
• On-site programming is possible via the onboard alphanumeric keypad or PC-NeT configuration software.

PC Software

An extensive suite of Windows-based software programs has been developed to enhance your experience with the MxPro 5 Series. This suite includes:

• Configuration tools
• Service tools
• Logo customization software
• Virtual panel tool

These programs provide flexibility and allow users to fully explore the capabilities of the control panel.

Networking Capabilities

Adding a network card enables the panel to communicate with:

• Other MxPro 5/MxPro 4 fire panels
• Remote terminals
• Network peripherals such as ipGateway™ or BMS/Graphical Interfaces

The Ad-NeT peer-to-peer network supports up to 2000 zones and can be configured in fault-tolerant loop or radial format.

Main Features

✔ 20 programmable Zonal LEDs / 25 System LEDs
✔ Supports Apollo, Argus Vega, Hochiki & Nittan Evolution protocols
✔ Graphical LCD interface, supporting up to 200 fire zones (EN54 compliant)
✔ Dedicated USB & RS232 serial ports for PC/modem connection
✔ Auto-learn, Loop Detection, and On-board Scope facility for easy commissioning and fault finding
✔ Multi-language graphical display with support for installer logos via Logo application software
✔ Integral P-Bus for system expansion via optional cards
✔ Approved to BS EN54 parts 2, 4, and 13
